Development in BOMBS


                                                              Abstract

Smart bombs are the weapons capable of destroying enemy targets without the need for launch aircraft to penetrate the envelopes of the air defense systems. These essentially comprise a terminal guidance unit that guides them in the last phase to achieve pinpoint accuracy. Increase accuracy means that a single, moderate size bomb can give a better result than multiple strikes with larger ,non-guided bombs.

Smart bombs are desirable both from ethical and tactical standpoints. On ethical grounds, the military desires that each warhead deployed should strike only its intended targets so those innocent civilians are not harmed by misfire. From tactical standpoint, it wants weapons with pinpoint accuracy to inflict maximum damage on valid military targets and minimize the number of strikes necessary to achieve mission objectives. Gravity bombs with laser or GPS/INS guidance is smart bombs that have changed the face of modern warfare.
You can see how lethal and merciless smart bombs can be a realistic battlefield scenario was amply demonstrated in Gulf War and recently reiterated during US attack on Iraq. This paper will explain you the operational mechanisms, salient feature and limitations of this rapidly grooming smart bomb

Introduction
"In World War II it could take 9,000 bombs to hit a target the size of an aircraft shelter. In Vietnam, 300.Today we can do it with one laser-guided munition from an F-117."
USAF, Reaching Globally, Reaching Powerfully: The United States Air Force in the Gulf War (Sept. 1991)
The United States Army began experimenting with radio-controlled remotely guided planes in the First World War, but the program had few successes. The first successful experiments
with guided bombs were conducted during World War II when television-guided bombs, flare sighted bombs and other steerable munitions, such as the 450 kg (1000 lb) AZON bomb, were developed. The Germans developed several types of steerable munitions, such as the 1400 kg (3085 lb) Fritz X, the closest Axis equivalent of the US Army Air Force's AZON device. There was even an attempt to produce a glider bomb that was released from a larger plane over the target, but the program stopped with the nuclear attacks in Japan.
The programs started again in the Korean War, where the political ramifications of nuclear war would have been unthinkable. In the 1960s, the electro-optical bomb (or camera bomb) was introduced. They were equipped with television cameras and steerable flare sights, in which the bomb would be steered until the flare superimposed the target. The camera bombs transmitted a "bomb's eye view" of the target back to a controlling aircraft. An operator in this aircraft then transmitted control signals to steerable fins fitted to the bomb. Such weapons were used increasingly by the USAF in the last few years of the Vietnam War because the political climate was increasingly intolerant of collateral damage.

Laser Guided Bombs: -

The development of laser-guided weapons has dramatically improved the accuracy of weapon guidance and delivery. With the assistance of build-up guidance kits, general GP bombs are turned into laser-guided bombs (LGBs). The kits consist of a computer- control group (CCG), guidance canards attached to the front of the warhead to provide steering commands, and a wing assembly attached to the aft end to provide lift. LGBs are maneuverable, free-fall weapons requiring no electronic interconnect to the aircraft. They have an internal semi active guidance system that detects laser energy and guides the weapon to a target illuminated by an external laser source. The designator can be located in the delivery aircraft, another aircraft, or a ground source.

All LGB weapons have a CCG, a warhead (bomb body with fuze), and an airfoil group. The computer section transmits directional command signals to the appropriate pair(s) of canards. The guidance canards are attached to each quadrant of the control unit to change the flight path of the weapon. The canard deflections are always full scale (referred to as "bang, bang" guidance).

The LGB flight path is divided into three phases: ballistic, transition, and terminal guidance. During the ballistic phase, the weapon continues on the unguided trajectory established by the flight path of the delivery aircraft at the moment of release. In the ballistic phase, the delivery attitude takes on additional importance, since maneuverability of the UGB is related to the weapon velocity during terminal guidance. Therefore, airspeed lost during the ballistic phase equates to a proportional loss of maneuverability. The transition phase begins at acquisition. During the transition phase, the weapon attempts to align its velocity vector with the line-of-sight vector to the target. During terminal guidance, the UGB attempts to keep its velocity vector aligned with the instantaneous line-of- sight. At the instant alignment occurs, the reflected laser energy centers on the detector and commands the canards to a trail position, which causes the weapon to fly ballistically with gravity biasing towards the target.

Target designators are semi-active illuminators used to "tag" a target. Typical laser guided bomb receivers use an array of photodiodes to derive target position signals. These signals are translated into control surface movements to direct the weapon to the target. An airborne detector can provide steering information to the pilot, via his gun sight, for example, and lead him on a direct heading to the target, finally giving him an aim point for a conventional weapon. Alternatively, a laser guided "smart" bomb or missile may be launched when a pilot is satisfied that the detector head has achieved lock-on and launch envelope requirements are satisfied. In either of these cases, the pilot may never see the actual target, only the aim point as indicated by the laser.

Laser designators and seekers use a pulse coding system to ensure that a specific seeker and designator combination work in harmony. By setting the same code in both the designator and the seeker, the seeker will track only the target designated by the designator. The pulse coding is based on Pulse Repetition Frequency (PRF). The designator and seeker pulse codes use a truncated decimal system. This system uses the numerical digits 1 through 8 and the codes are directly correlated to a specific PRF. Dependent upon the laser equipment, either a three digit or a four-digit code can be set. Coding allows simultaneous or nearly simultaneous attacks on multiple targets by a single aircraft, or flights of aircraft, dropping laser guided weapons (LGWs) set on different codes. This tactic may be employed when several high priority targets need to be expeditiously attacked and can be designated simultaneously by the supported unit(s).
Fire control laser systems are laser rangefinders (LRFs) and laser designators (LDs). These laser systems can be far more harmful to the eye than laser training devices such as MILES and Air-to-Ground Engagement System/Air Defense (AGES/AD) laser simulators. Consequently, fire control lasers require control measures to prevent permanent blindness to an unprotected individual viewing the laser system from within the laser beam.

                                                                        Development:-

Laser-guided weapons were first developed in the United States in the early 1960s. The USAF issued the first development contracts in 1964, leading to the development of the Paveway™ series, which was used operationally in Vietnam starting in 1968. Although there were a variety of technical and operational problems, the results were generally positive. LGBs proved to offer a much higher degree of accuracy than unguided weapons, but without the expense, complexity, and limitations of guided air-to-ground missiles like the AGM-12 Bullpup. The LGB proved particularly effective against difficult fixed targets like bridges, which previously had required huge loads of "dumb" ordnance, and large numbers of sorties, to destroy.
It was determined that 48 percent of Paveways dropped during 1972–73 around Hanoi and Haiphong achieved direct hits, compared with only 5.5 percent of unguided bombs dropped on the same area a few years earlier.[1] The average Paveway landed within 23 feet of its target, as opposed to 447 feet for gravity bombs.[1] The leap in accuracy brought about primarily by laser guidance made it possible to take out heavily defended, point objectives that had eluded earlier air raids. The most dramatic example was the Thanh Hoa Bridge, 70 miles south of Hanoi, a critical part crossing point over the Red River. Starting in 1965, U.S. pilots had flown 871 sorties against it, losing 11 planes without managing to put it out of commission. In 1972 the “Dragon’s Jaw” bridge was attacked with Paveway bombs, and 14 jets managed to do what the previous 871 had not: drop the span, and cut a critical North Vietnamese supply artery.
In the wake of this success, other nations, specifically the Soviet Union, France, and Great Britain, began developing similar weapons in the late 1960s and early 1970s, while US weapons were refined based on combat experience.
The USAF and other air forces are now seeking to upgrade their LGBs with GPS guidance as a back-up. These weapons, such as the USAF Enhanced Guided Bomb Unit (part of the Paveway™ family), use laser designation for precision attacks, but contain an inertial navigation system with GPS receiver for back-up, so that if the target illumination is lost or broken, the weapon will continue to home in on the GPS coordinates of the original target.

                                                              Problems And Limitations:-

While LGBs are highly accurate under ideal conditions, they present several challenges for successful use, making them somewhat less than the "silver bullet" sometimes suggested.
The first problem is designation. To ensure accurate guidance, the target must be illuminated for several seconds before launch, allowing the weapon's seeker to obtain a positive lock, and the target must remain illuminated during much of the weapon's transit time. If the designator's "sparkle" is turned off, blocked, or moved, the weapon's accuracy will be greatly reduced.
For an accurate attack against a small target, uninterrupted designation is essential. But, the guidance controls of many LGBs (such as the American Paveway™ II) cause large deflections (visible as a noticeable wobble) which reduce the bomb's range. To compensate, crews will often release their weapons in an unguided, ballistic arc, activating the designator only to refine the bomb's final impact point. This is more demanding of crew and aircraft, requiring a high standard of basic, unguided bombing accuracy and more attention to the bomb's flight.
Laser designation is very sensitive and vulnerable to weather conditions. Cloud cover, rain, and smoke often make reliable designation impossible. In war conditions, many attacks have been aborted due to poor visibility.
In the 1970s and 1980s it was common for aircraft to rely on a separate designator, either carried by ground forces, operated by the forward air controller, or carried by another aircraft in the strike group. It was often deemed more practical for one aircraft to designate for its comrades. Modern conflicts and a growing emphasis on precision-guided weapons have pointed to the need for autonomous designation, and many fighter-bomber aircraft are now being fitted with designator pods to self-designate for laser-guided munitions.
Even if the launch aircraft is capable of autonomous designation, problems remain. Laser illumination can be interrupted by smoke, fog, or clouds, limiting the usefulness of LGBs in poor weather or very dusty conditions. In desert warfare, such as the 1991 Gulf War, laser designation sometimes reflected off the sand, causing weapons to home on false targets. Furthermore, the need to provide designation may leave the aircraft dangerously exposed to ground fire or enemy air support.
An additional concern is the limited "launch envelope" of an unguided weapon. The reflected laser "sparkle" can be described as a basket into which the weapon must be steered to hit the target. If the weapon is released too low or to far from the target, or in a trajectory that puts the weapon outside the seeker's field of view, it is likely to miss. Optimum altitude for an effective LGB attack is relatively high, increasing the aircraft's vulnerability to surface-to-air missile (SAM) attacks.
For these reasons, while all modern air forces have put an increasing emphasis on LGBs and other precision-guided munitions, some tacticians still see an important role for the accurate delivery of unguided bombs. During their 1981 raid on the Iraqi nuclear reactor at Osirak, the Israeli Air Force chose to use unguided Mark 84 bombs rather than laser-guided weapons because they felt the need to designate the target would leave the attackers unacceptably vulnerable.





Figure 1 A laser-guided GBU-24 (BLU-109 warhead variant) strikes its target

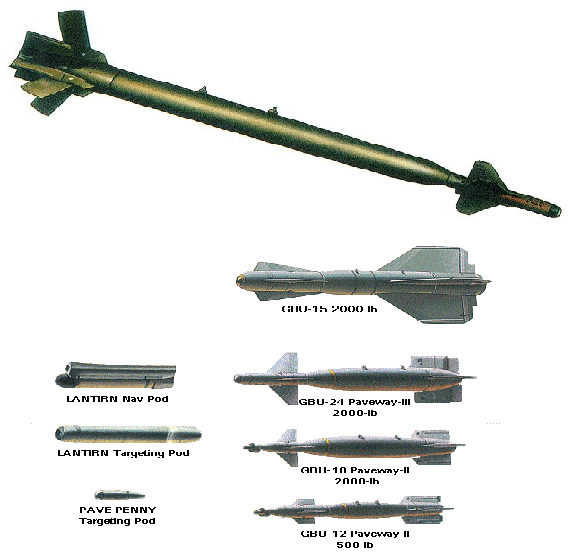

Figure 2 BOLT-117, the World’s  first laser guided bomb & Carrier
Specifications
Mission
Offensive counter air, close air support, interdiction
Targets
Fixed hard
Class
4,000 lb. Penetrator, Blast/Fragmentation
Service
Air Force
Contractor
Lockheed (BLU-113/B), National Forge (BLU-113A/B),
Program status
Production
First capability
1991
Weight (lbs.)
4,414
Length (in.)
153
Diameter (in.)
14.5
Explosive
6471bs. Tritonal
Fuze
FMU-143 Series
Stabilizer
Air Foil Group (Fins)
Guidance method
Laser (man-in-the-loop)
Range
Greater than 5 nautical miles
Development cost
Development cost is not applicable to this munition.
Production cost
$18.2 million
Total cost
$18.2 million
Acquisition unit cost
$145,600
Production unit cost
$145,600
Quantity
125 plus additional production
Platforms
F-15E, F-111F


NON- CONVENTIONAL ENERGY SOURCES



ABSTRACT
              Not only in industries but also in our economic life in general significance of energy generation or power shows a steadily increase productivity in most important industrial fields such as mining, metallurgical, civil engineering, architecture and in all types of machine construction etc. there is an impending need to make much more need to make Non Conventional Energy attain popular acclaim.  This is also very essential to preserve the conventional sources of energy and explore viable alternatives like sustainable energy (the energy which we are already utilizing but for some safety of other uses we are suddenly wasting it, that can be reutilized), solar, wind and biomass that can enhance sustainable growth.  What is more, such alternatives are environment friendly and easily replenish able.  Therefore, they need to be thoroughly exploited with a functionally expedient, energy matrix mix.
               The Stair case electricity generator is specially planned to design and fabricate the conversion unit for utilizing the available unconventional energy source. That is tremendously available energy in low intensity with ample quantity can be utilized. This machine converts reciprocating motion in to rotary motion. The rotational power is stored in flywheel & flywheel rotate alternator that generate electricity.
                This source of power can be used at the station building, platform and waiting rooms. Also by accumulating this low intensity electricity in Batteries, it can be supplied to the commercial complexes or shopping complexes near by the railway station or in big villages or in towns where there is scarcity of electric supply.

                                                                    GENERATION OF ENERGY
The development planning process designs strategies and activities to use, enhance or conserve both natural and economic goods and services. In big modern cities, economic goods and services almost completely replace the natural ones.
Energy is the prime source of all socio-economic activities of the human community. The demographic rate of growth globally and the widening spectrum of economic growth would result in demands of energy at an incremental rate of 7 to 8% annually.  This can easily support a GDP growth of 8 to 9% per annum. Projections point toward a doubling of global energy demands in the decade starting 2020.   There will be a marked shift in patterns of energy consumption whereby developing economies of the world would have a share exceeding two-third of global energy consumption by that period.
Fossil fuels' consumption would remain the major source of energy generation and globally employed power generation technologies. The apportionment of renewable energy in the entire energy supply will continue to be marginal in the real sense.  The contribution of renewable energy-excepting hydel energy and conventional biomass as a proportion of global energy output is pegged at a paltry 2%. This scenario in all likelihood is not going to be altered therefore, guaranteeing the possibility of nudging the renewable contribution up to 5% by 2020. The global sources of fossil fuel will have become dearer due to their depletion thereby, making the viability of fossil fuel plants restoring parity with the renewable sources.  60% of the cumulated energy needs world-wide would be met through renewable sources.
Growing economies, especially of Asia are gifted with sufficient resource base and non-conventional energy technologies are consistent both for grid linked energy generation and transmission in out of the way locales that are islanded from the grid.  Adaptation of technology and employing them should be pursued right from this moment to have a head start, be informed of the barriers in technology applications of the renewable variety and synergising them with the existing, traditional power production technology and T&D networks.  It is known that in coming times, wind energy will be the most cost-effective renewable resource. Yet, it is doubtful if any individual technology would hold centre-stage.
It was in the 1970s that the real potential and role of renewable energy sources was sensed and identified in India for sustainable energy growths. During the past quarter of a century, a significant thrust has been given to the development, trial and induction of a variety of renewable energy technologies for use in different sectors.  The activities cover all major renewable energy sources, such as biogas, biomass, solar energy, wind energy, small hydro power and other emerging technologies.
India has presently among the world's plentiful agenda on renewable energy. In the 8th Plan, vis-à-vis a proposal of 600 MW generations, close to 1050 MW of power generating capacity fastened to renewable energy sources was added. About 1500 MW of the total grid capacity in the country is now based on renewable energy sources. India is rated fourth in the world with a wind power capacity of 1000-1100 MW.  Small hydel power generation, which is especially ideal for remote, hilly regions, presently not exploited but holds a potential of 500 MW in today's scenario. India has an extensive cane sugar production and we are implementing the world's biggest biogases based cogeneration programmed in agglomeration with sugar mills. There is substantial leverage as regards to deducing energy from urban and industrial wastes. The National Programmes lays special emphasis on supplying energy to rural areas. Close to 2.75 million biogas plants and over 28 million upgraded wood-stoves are also in use in the country.
In the sphere of solar energy use, solar photovoltaic and solar thermal technologies are gaining immediate reception for a host of industrial and commercial applications, as well as in Non Electrified and Rural Zones (NERZ). The country has the world's largest assemblage of solar photovoltaic, consisting of about 500,000 PV systems totaling to 39 MW, and encompassing over 30 variegated operations.
There is an added emphasis on venturing into grid quality power generation Programmes oriented on solar thermal and solar photovoltaic technologies. A 140 MW Integrated Solar Combined Cycle (ISCC) Power Project is being accorded conclusive shape to be established at Methane near Jodhpur in Rajas than. This will be the first of its kind, and the largest such project in the world.
To give a fillip to power generation from renewable energy, State Governments and utilities provide remunerative power purchase agreements and arrangements for wheeling, banking and buy back of power. 12 States have so far announced policies for non-conventional energy based power generation. The Indian Renewable Energy Development Agency (IREDA), the corporate financing arm of the Ministry, is the only Agency of its kind in the world dedicated to financing of renewable energy projects. Interest rates vary from 0% to 16%, with special rates being offered for projects.
There is an impending need to make much more forays to make Non Conventional energy attain popular acclaim.  This is also very essential to preserve the conventional sources of energy and explore viable alternatives like solar, wind and biomass that can enhance sustainable growth.  What is more, such alternatives are environment friendly and easily replenish able.  Therefore, they need to be thoroughly exploited with a functionally expedient, energy matrix mix.
A revolutionary step would be the advent of renewable energy co-operatives for power vending, installation and servicing of renewable energy systems in pockets like NERZs. With a view to take a long-term perspective, and to actualize the entire scope of Non-Conventional energy sources, it is incumbent to draw up a capacious Renewable Energy Policy involving all players in the field, together with the active participation of consumers as well
In the Ninth Plan (1997-02), the accent is on according commercialization and development of entrepreneurship in all Renewable and Non Conventional Energy Schemes and Plans.  An extra power generating capacity from Renewable and Non Conventional Energy sources of about 1500 MW is envisaged.  The immediate challenge is to reconcile the reduced budgetary allocations in the 9th Plan due to fiscal control.   The Ministry of Non Conventional Energy has stated objective of propping up 24,000 MW from Renewable and Non Conventional Energy by the year 2012.
The need is however to have adequate policy framework to be in place with an aim to provide impetus through streamlining the structure of Renewable and Non Conventional Energy.  The high potential is what should spur maximum efforts. The bottlenecks are that although there are good plans, we often fall short in measuring up to meet the desired levels of optimization of our potential. If there is a strict regiment by which Renewable and Non Conventional Energy Sources are utilized, India is sure to have adequate measure of success. The Numero Uno position in Renewable and Non Conventional Energy is well within reach with a little bit of concerted effort.



STAIR  CASE  ENERGY  GENERATOR



INTRODUCTION
                               Thus we selected stair case power generator means the “Energy in motion when it is suddenly applied with a sort of obstacle, then according to Newton’s law for every action there is an equal and opposite reaction. Utilization of this reaction is the basic reason behind the selection of this project work.”


FIG 1:  the set up flow diagram
We can install generator along with the arrangement of converting the       reciprocating motion to the rotary motion. This rotary motion is further magnify using reciprocating motion in to rotary motion-belt & pulley drive. The output of pulley is attached with flywheel it stored kinetic energy and transfer to alternator which generate electricity with zero cost.

WORKING OF PROJECT


                  STAIR CASE STEP POWER GENERATOR Converters basically new concept of non-conventional energy generation. It is electro-mechanical energy generating machine. This machine converts reciprocating motion in to rotary motion. The rotational power is stored in flywheel & flywheel rotates dynamo, which generates electricity.
Here first important point is how we get reciprocating motion, which is prime input in the system. For that we use weight of stepping person on the stair case step that climbs or get down the over the overhead bridges. We put our machine underneath the stair case installing different  units below every step foot space. Each person stepping on the every foot step will press the individual unit separately. All the units are connected to the common shaft using chain and sprocket drive. For stepping moment only the energy is generated and for that instant sprocket wheel will rotate the common shaft summing up the rotating motion altogether.

                The head of rack is brought up to level beneath the stair foot plate surface. When person move on the step, the rack on it will be pushed down. The rack is attached with free wheel type pinion that rotates in one direction only. The rack & pinion arrangement convert reciprocating motion in to rotary motion.

                This rotary motion is further magnified using reciprocating motion in to rotary motion-belt & pulley drive. The output of pulley is attached with flywheel
which stores kinetic energy and transfer to dynamo which generate electricity with zero cost.
                 A "generator" and "motor" is essentially the same thing: what you call it depends on whether electricity is going into the unit or coming out of it. A generator produces electricity. In a generator, something causes the shaft and armature to spin. An electric current is generated, as shown in the picture (lighting bolt).Lots of things can be used to make a shaft spin - a pinwheel, a crank, a bicycle, a water wheel, a diesel engine, or even a jet engine. They're of different sizes but it's the same general idea. It doesn't matter what's used to spin the shaft - the electricity that's produced is the same.
The sizes of major components are flywheel is with 1m dia, 10cm rim width, and 20mm rim thickness. It is a six-armed flywheel.   Mounted on a shaft with 4/5 cm. Dia. A bicycle mechanism is arranged with the help of which limb movement of the operator is converted into rotation of big sprocket of the chain drive.   The speed of small sprocket is further amplified using G’ a speed rise gear pair.  A young lad of age group 20-25, slim stature 165cm height, speeds up this flywheel up to 800 rpm in duration of 1 minute.
